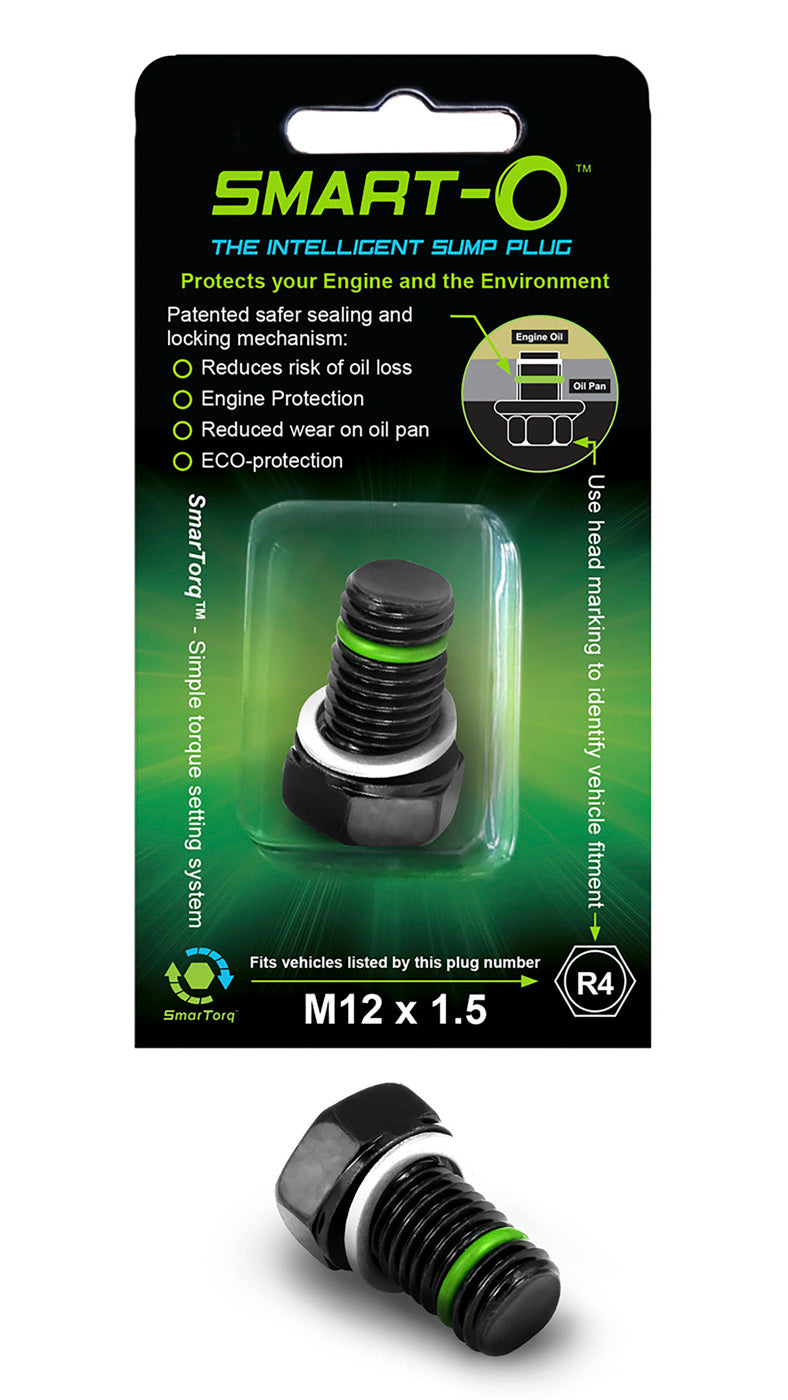

R4 - SMART-O Oil Drain Plug (Sump Plug)

Woodrum LLC

R4 - SMART-O Oil Drain Plug (Sump Plug)

1. Confirm fitmentCheck SKU, thread size or use the parts finder.
2. Install onceSMART-O® replaces the standard drain plug.
3. Service smarterReuse the plug and replace the washer at each oil change.
Part / SKUR4BP1
Thread sizeConfirm before ordering
Pack quantitySee product options
Fitment noteUse fitment support if unsure
$12.99

Costs around one coffee per service. Designed to help prevent leaks, stripped oil pan threads and comeback jobs.

Fitment matters. Check vehicle/thread details before dispatch if unsure. Check fitment before adding →
Quantity

Not sure it fits? Send vehicle details before we ship.

Authorised US supplyGenuine SMART-O® stock from the authorised US supplier.
Fitment supportConfirm before dispatch if unsure.
Wrong plug?Contact us before installation; unused stock may be exchanged where possible.
Ships from the USCurrent stock and product guidance.
R4 - SMART-O Oil Drain Plug (Sump Plug) $12.99

Weight & Dimensions:  M12x1.5 mm. Barcode:  9355733000041 Anti-leak & Anti-vibration: seals the oil pan from the inside & counteracts vibration. Wide application: The oil drain plug is ...

Genuine SMART-O® stock from the authorised US supplier
Fitment support before dispatch if unsure
17× harder to loosen than OEM — Oakland University tested

What you’re buying

Protection, not just a plug.

SMART-O® drain plugPatented face-sealing plug matched to your vehicle.
Oil-reactive O-ringDesigned to expand slightly on contact with engine oil and support seal integrity.
Installation confidenceUse the torque guidance and fitment checks before service.

Weight & Dimensions:  M12x1.5 mm.

Barcode:  9355733000041

Anti-leak & Anti-vibration: seals the oil pan from the inside & counteracts vibration.

Wide application: The oil drain plug is suitable for most vehicles, cars, motorcycles, trucks, etc.

Made of high-quality materials, which have good heat & corrosion resistance.

Faster installation: the SmarTorqª simple & unified torque setting makes it easy to install.

Excellent performance: The oil drain plug has good sealing performance & can effectively prevent oil leakage.

Patented sealing & locking mechanism that enables the plug to resist vibration & seals more effectively.

Engine & Oil Pan Protection: the seal & anti-vibration mechanism reduce risk of engine damage due to catastrophic oil loss caused by loss of drain plug.

Re-usable: the plug can be reused multiple times.

Eco-friendly: reduces risk of oil leaks & less material waste due to the re-usable seal. The black coating is free of harmful Cr6, so parts can be easily recycled.

Instructions for use:

  1. Ensure correct fit by verifying that SMART-O-PLUG has the same thread diameter & thread pitch of your original sump plug
  2. Use a torque wrench & apply OE specified torque. Or refer to SmarTorq specs: 24.4 Nm (petrol engines) / 40.6 Nm (diesel engines). DO NOT torque plugs above 40.6 Nm
  3. Polymer washer is not reusable, always replace washer with every oil change
  4. Plug is reusable but only if O-ring is intact, not worn & not damaged.
  5. Always inspect plug threads & O-ring surface before installation & reuse
  6. Do not install plug in oil pans with heli-coil inserts or in thin steel oil pans where O-ring might protrude beyond the thread area, preventing the O-ring from working properly

1. Remove the old drain plug. Clean the oil pan thread and face area with a clean cloth.

2. Inspect the SMART-O® O-ring. Ensure the O-ring is seated correctly in the groove. Do not apply thread sealant or PTFE tape.

3. Thread by hand first. Always start threading by hand to avoid cross-threading. Thread until the plug head contacts the oil pan face.

4. Tighten with SmarTorq™. Petrol engines: 24.4 Nm (18 ft-lb). Diesel engines: 40.6 Nm (30 ft-lb). Do not exceed these torque values.

5. Check after first run. After the first run, inspect for leaks. The O-ring expands slightly in contact with engine oil to support seal integrity.

Use the fitment check as a starting point, then confirm thread size before ordering if anything is unclear.
